P2.5-EinTech main products are outdoor led screen|led display panel|led screen rental rental led display| led signs.

Products Features：

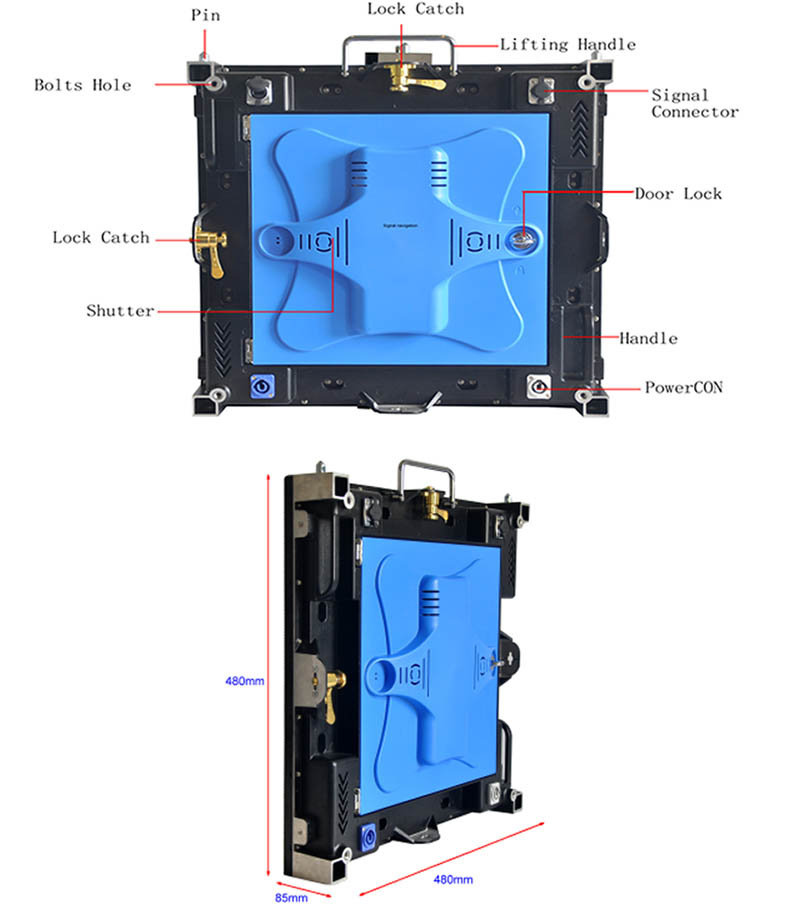

1. Cabinet weight is only 8.3 kg, decreasing the transportation cost and the intensity of labor.

2. Noiselessness with no fan design, low power consumption, can be used in the temperature range of -30℃~60℃.

3. The cabinet cover uses the plastics, lighter and lower costs

4. Seamless, surface tolerance less than 0.2mm

项目分类Model No.		P2.5	P3	P4	P5	P6
LED module	像素间距Pixel pitch	2.5mm	3mm	4mm	5mm	6mm
	像素组成 Pixel configuration	SMD2121(3 in 1)	SMD2121(3 in 1)	SMD2121(3 in 1)	SMD3528( 3 in 1)	SMD3528(3 in 1)
	模组尺寸Module size	160mm×160mm	240mm×240mm	240mm×240mm	240mm×240mm	240mm×240mm
	模组分辨率 Module resolution	64×64	80×80	60×60	48×48	40×40
	像素密度 Pixel per sqm	160000 pixels/㎡	111111 pixels/㎡	62500 pixels/㎡	40000 pixels/㎡	27777 pixels/㎡
	模组功率 Module power consumption	≤14W	≤38W	≤45W	≤49W	≤43W
Main parameter	可视距离Viewing distance	＞2.5m	＞3m	＞4m	＞5m	＞6m
	可视角度 Viewing angle	≥140°	≥140°	≥140°	≥140°	≥140°
	最大功耗 Max power consumption	≤860W/㎡	≤600W/㎡	≤780W/㎡	≤850W/㎡	≤750W/㎡
	平均功耗Average power consumption	≤260W/㎡	≤180W/㎡	≤235W/㎡	≤260W/㎡	≤250W/㎡
	灰度等级 Gray scale	65536级每颜色（同步） 65536 level (Syncc)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)
	控制方式 Control system	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async
	扫描方式 Scan mode	恒流1/16S Constant curerent 1/32 scan	恒流1/20S Constant curerent 1/20 scan	恒流1/15S Constant curerent 1/15 scan	恒流1/12S Constant curerent 1/12scan	恒流1/10S Constant curerent 1/10 scan
	刷新频率 Refresh rate	＞840Hz	＞840Hz	＞1000Hz	＞1200Hz	＞1200Hz
	白平衡亮度 Brightness	＞2500cd/㎡	＞1200cd/㎡	＞1300cd/㎡	＞1600cd/㎡	＞1800cd/㎡
	供电电压 Input voltage	AC110V-220V (±10％)50/60Hz	AC110V-220V (±10％)50/60Hz	AC110V-220V(±10％)50/60Hz	AC110V-220V(±10％)50/60Hz	AC110V-220V(±10％)50/60Hz
	工作温度 Operating temperature range	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％
	工作湿度 Operating humidity range	10％～90％RH	10％～90％RH	10％～90％RH	10％～90％RH	10％～90％RH
	防护等级 Ingress Protection	IP20	IP20	IP20	IP20	IP20
	寿命 Lifetime	100000H	100000H	100000H	100000H	100000H
