P6 Fixed led displays-EinTech main products are outdoor led screen|led display panel|led screen rental rental led display| led signs.

Products Features：

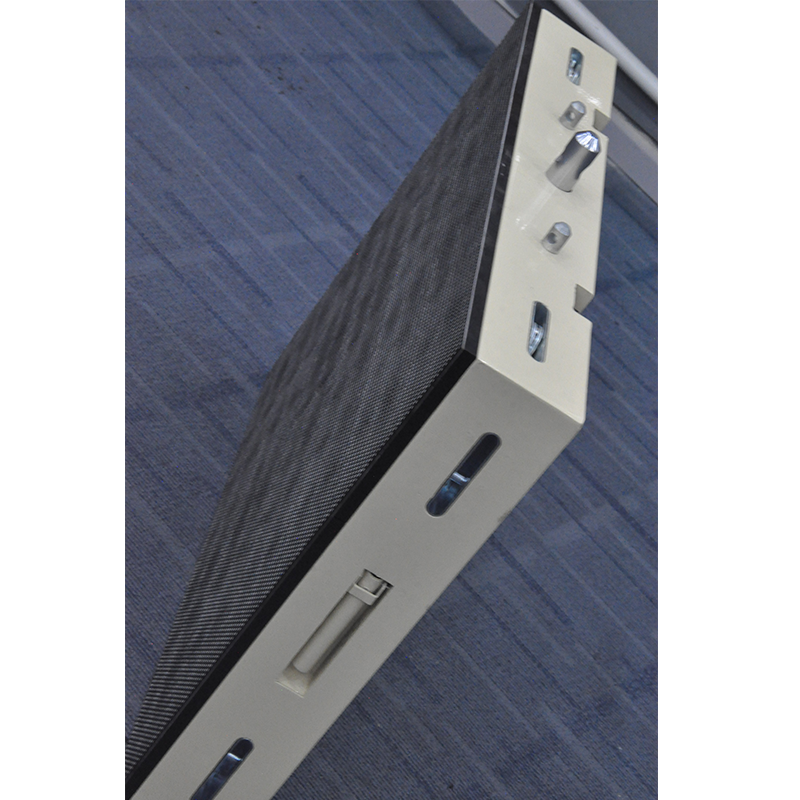

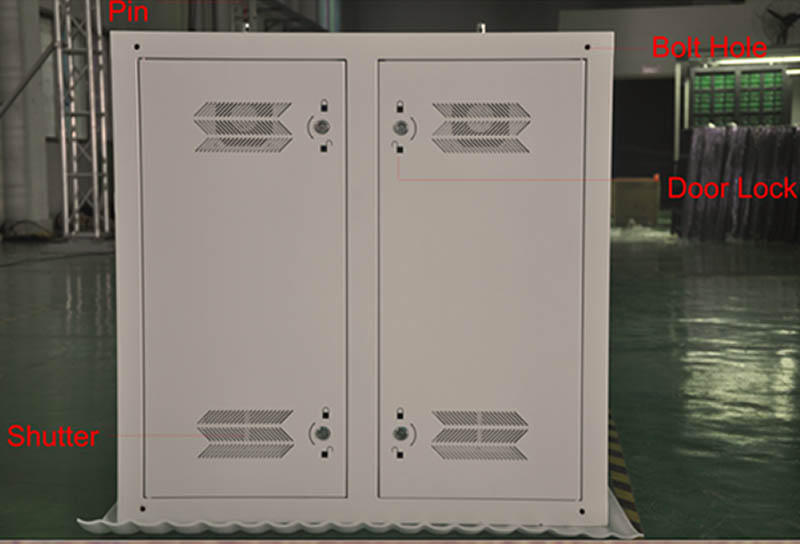

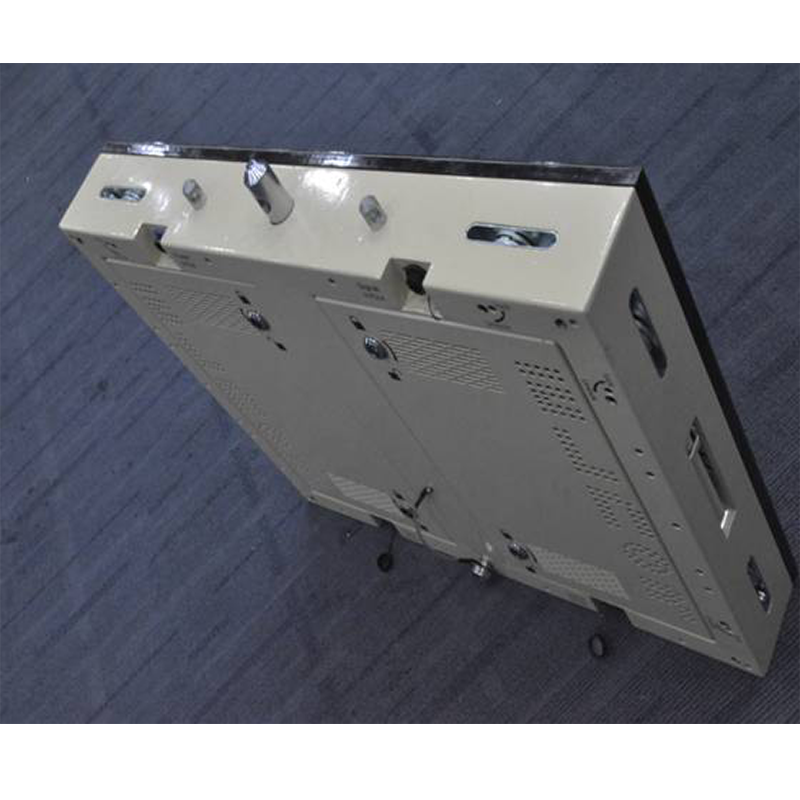

1. High-performance metal plate cabinet,firm,durable and economical.

2. High reliability, Long life time,

3. Focus on the color resolution, gray scale, refresh rate, match any indoor surroundings.

项目分类Model No.		P3	P4	P5	P6	P7.62
LED module	像素间距 Pixel pitch	3mm	4mm	5mm	6mm	7.62mm
	像素组成 Pixel configuration	SMD2121(3in1)	SMD2121 (3in1)	SMD2121 (3in1)	SMD3528 (3in1)	SMD3528 (3in1)
	模组尺寸 Module size	192mm×192mm	128mm×128mm	320mm×160mm	192mm×192mm	244mm×122mm
	模组分辨率 Tile resolution	64×64	32×32	64×32	32×32	32×16
	像素密度 Pixel per sqm	111111 pixels/㎡	62500 pixels/㎡	40000 pixels/㎡	27777 pixels/㎡	17222 pixels/㎡
	模组功率 Module power consumption	≤28W	≤11W	≤28W	≤18W	≤22W
Main parameter	可视距离Viewing distance	＞3m	＞4m	＞5m	＞6m	＞8m
	可视角度 Viewing angle	≥140°	≥140°	≥140°	≥140°	≥140°
	最大功耗 Max Power consumption	≤760W/㎡	≤670W/㎡	≤550W/㎡	≤480W/㎡	≤470W/㎡
	平均功耗Average Power consumption	≤230W/㎡	≤200W/㎡	≤165W/㎡	≤150W/㎡	≤140W/㎡
	灰度等级 Gray scale	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)

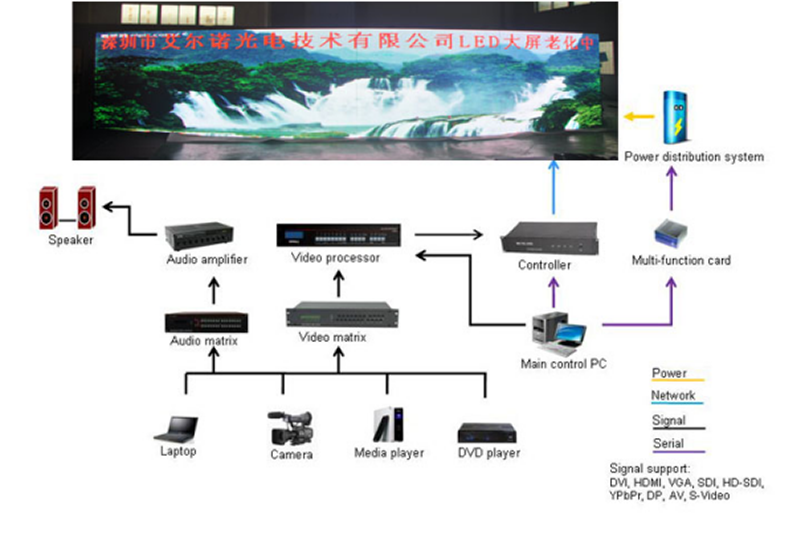

	控制方式 Control system	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async
	扫描方式 Scan mode	恒流1/16S Constant current 1/16 scan	恒流1/16S Constant current 1/16 scan	恒流1/8S Constant current 1/8 scan	恒流1/8S Constant current 1/8 scan	恒流1/8S Constant current 1/8 scan
	刷新频率 Refresh rate	＞1000Hz	＞1000Hz	＞1200Hz	＞1200Hz	＞1200Hz
	白平衡亮度 Brightness	＞1300cd/㎡	＞1200cd/㎡	＞1600cd/㎡	＞2000cd/㎡	＞1500cd/㎡
	供电电压 Input Voltage	AC110V-220V（±10％）50/60Hz	AC110V-220V（±10％）50/60Hz	AC110V-220V（±10％）50/60Hz	AC110V-220V（±10％）50/60Hz	AC110V-220V（±10％）50/60Hz
	工作温度 Operating Temperature Range	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％
	工作湿度 Operating Humidity Range	10％～90％RH	10％～90％RH	10％～90％RH	10％～90％RH	10％～90％RH
	防护等级 Ingress Protection	IP20	IP20	IP20	IP20	IP20
	寿命 Lifetime	100000H	100000H	100000H	100000H	100000H
