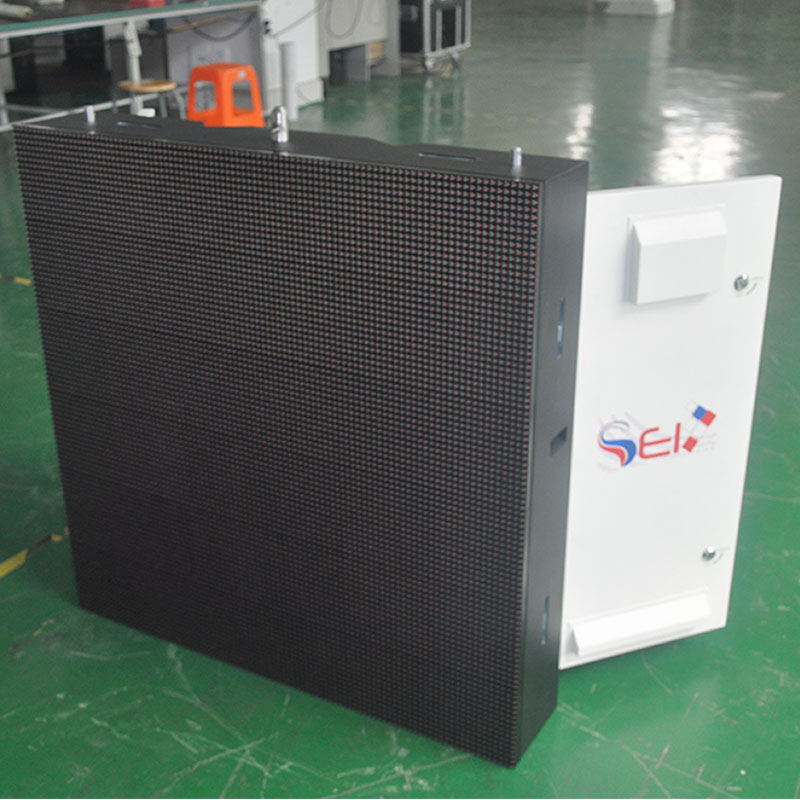

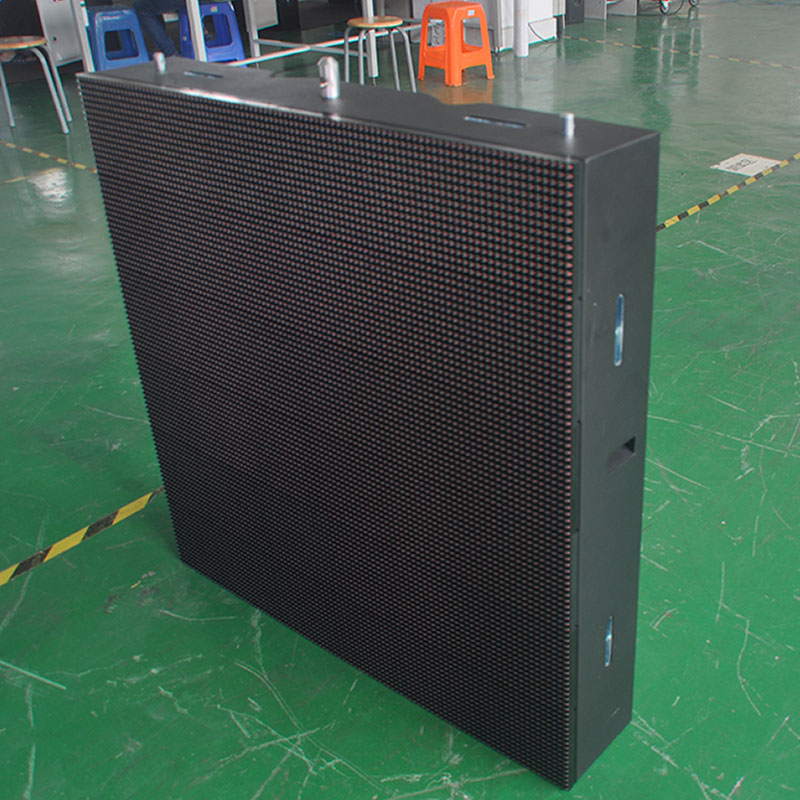

P10 Fixed led displays-EinTech main products are outdoor led screen|led display panel|led screen rental rental led display| led signs.

Products Features：

1. High brightness,IP65 protection grade, waterproof rubber gasket and military-grade coating enable the screen to work in all weather outdoor environments.

2. Low power consumption, the first option for saving energy

3 . Adopt aerofoil fan, cooling immediately，resistance high temperature。

4 Persistent uniformity, contrast and flatness of advertising LED screen, increasing the profit and competitiveness of the operator.

项目分类Model No.		P5	P6	P8	P10
LED module	像素间距Pixel pitch	5mm	6mm	8mm	10mm
	像素组成 Pixel configuration	SMD2727（3in1）	SMD3535（3in1）	SMD3535（3in1）	SMD3535（3in1）
	模组尺寸Module size	160mm×160mm	192mm×192mm	256mm×128mm	320mm×160mm
	模组分辨率 Module resolution	32×32	32×32	32×16	32×16
	像素密度Pixel per sqm	40000 pixels/㎡	27777 pixels/㎡	15625 pixels/㎡	10000 pixels/㎡
	模组功率 Module power consumption	≤19W	≤26W	≤26W	≤26W
Main parameter	可视距离 Viewing distance	＞5m	＞6m	＞8m	＞10m
	可视角度 Viewing angle	≥120°	≥120°	≥120°	≥120°
	最大功耗 Max Power consumption	≤680W/㎡	≤710W/㎡	≤790W/㎡	≤500W/㎡
	平均功耗Average Power consumption	≤205W/㎡	≤215W/㎡	≤240W/㎡	≤150W/㎡
	灰度等级 Gray scale	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)	65536级每颜色（同步） 65536 level (Sync)
	控制方式 Control system	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async	同步/异步 Sync/Async
	扫描方式 Scan mode	恒流1/8S Constant current 1/8 scan	恒流1/8S constant current 1/8 scan	恒流1/4S Constant current 1/4 scan	恒流1/4S Constant current 1/4 scan
	刷新频率 Refresh rate	＞840Hz	＞840Hz	＞1200Hz	＞1200Hz
	白平衡亮度 Brightness	＞5500cd/㎡	＞5000cd/㎡	＞6000cd/㎡	＞5000cd/㎡
	供电电压 Input voltage	AC110V-220V（±10％）50/60HZ	AC110V-220V（±10％）50/60HZ	AC110V-220V（±10％）50/60HZ	AC110V-220V（±10％）50/60HZ
	工作温度 Operating Temperature Range	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％
	工作湿度 Operating Humidity Range	10％～90％RH	10％～90％RH	10％～90％RH	10％～90％RH
	防护等级 Ingress Protection	IP65	IP65	IP65	IP65
	寿命 Lifetime	100000H	100000H	100000H	100000H
