P6.66-EinTech main products are outdoor led screen|led display panel|led screen rental rental led display| led signs.

Product Features

1 Thin strucrure design and light weight. Great convenience in event show in transportaion and installation.

2. Excellent image quality, wide viewing angle and color uniformity.

3. Models aviable with up to 6000 nits brightness.

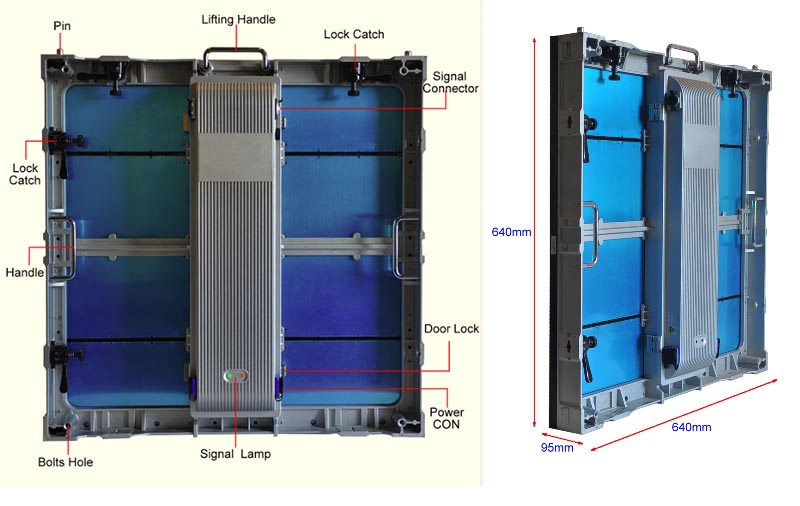

4. Standrdized module and frame design for faster and simpler assemble and installation

项目分类Model No.		P6.66	P8	P10
LED module	像素间距Pixel pitch	6.66mm	8mm	10mm
	像素组成 Pixel configuration	SMD3535(3in1)	SMD3535(3in1)	SMD3535(3in1)

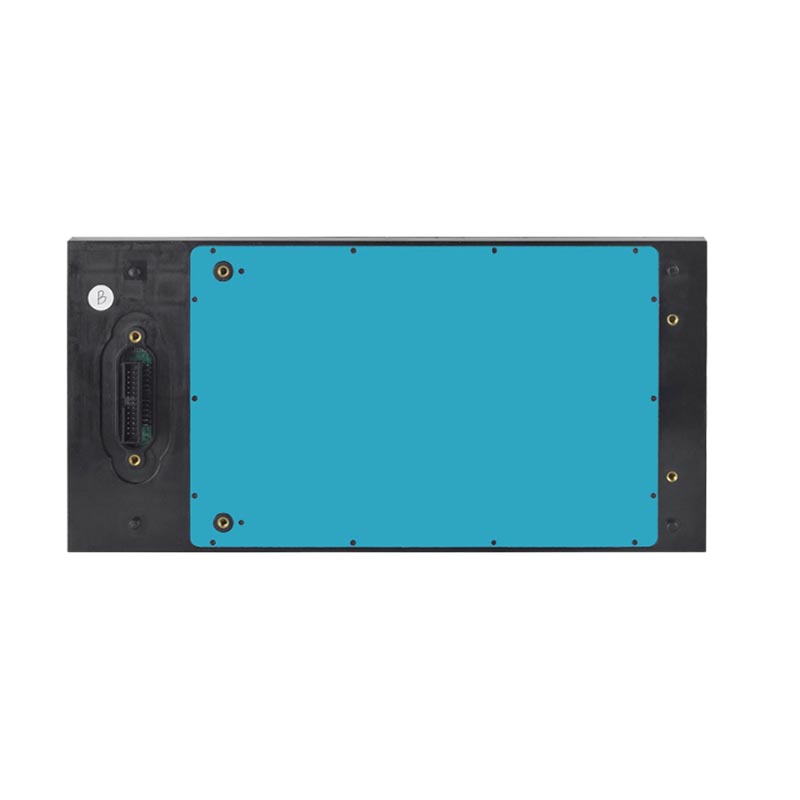

	模组尺寸Module size	320mm×160mm	320mm×160mm	320mm×160mm
	模组分辨率 Module resolution	48×24	40×20	32×16
	像素密度 Pixel per sqm	22545pixels/㎡	15625pixels/㎡	10000pixels/㎡
	模组功率 Module power consumption	≤38W	≤41W	≤39W
Main parameter	可视距离Viewing distance	＞6m	＞8m	＞10m
	可视角度 Viewing angle	≥140°	≥140°	≥140°
	最大功耗 Max power consumption	≤730W/㎡	≤800W/㎡	≤750W/㎡
	平均功耗Average power consumption	≤220W/㎡	≤240W/㎡	≤230W/㎡
	灰度等级 Gray scale	65536级每颜色（同步）65536 level (Sync)	65536级每颜色（同步）65536 level (Sync)	65536级每颜色（同步）65536 level (Sync)

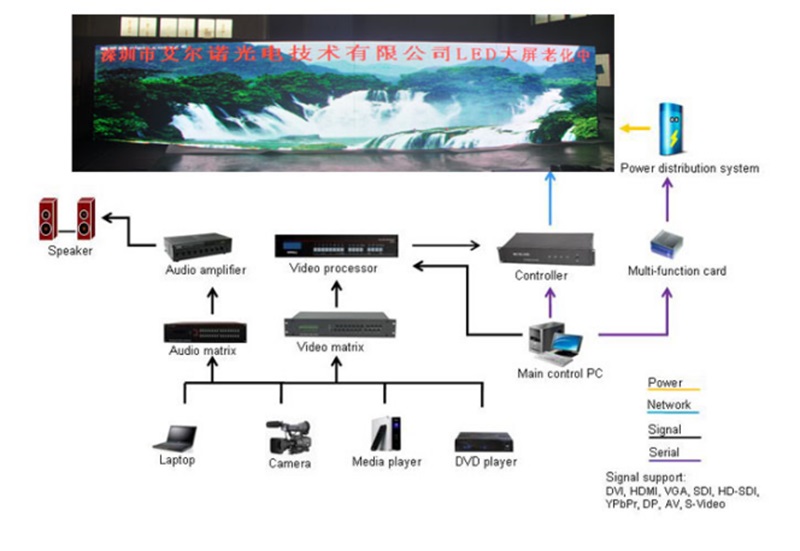

	控制方式 Control system	同步/异步 Sync/Async	同步/异步Sync/Async	同步/异步Sync/Async
	扫描方式 Scan mode	恒流1/6S Constant current 1/6 scan	恒流1/5S Constant current 1/5 scan	恒流1/4S Constant current 1/4scan
	刷新频率 Refresh rate	＞1200Hz	＞1200Hz	＞1200Hz
	白平衡亮度 Brightness	＞6000cd/㎡	＞6600cd/㎡	＞6000cd/㎡
	供电电压 Input voltage	AC110V-220V（±10％）50/60Hz	AC110V-220V（±10％）50/60Hz	AC110V-220V（±10％）50/60Hz
	工作温度 Operating temperature range	﹣20℃～50℃±10％	﹣20℃～50℃±10％	﹣20℃～50℃±10％
	工作湿度 Operating humidity range	10％～90％RH	10％～90％RH	10％～90％RH
	防护等级 Ingress Protection	IP65	IP65	IP65
	寿命 Lifetime	100000H	100000H	100000H
